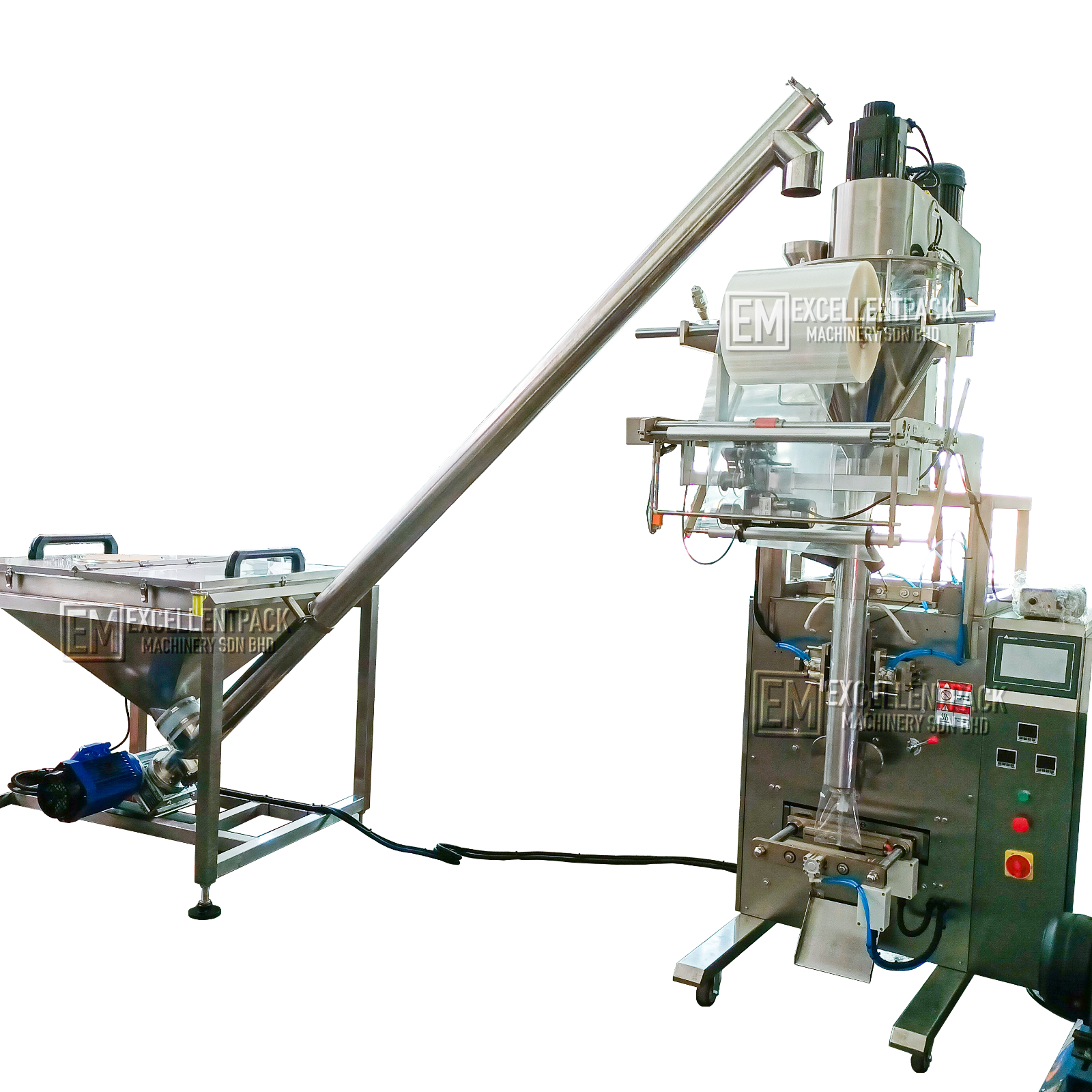

POUCH PACKAGING MACHINE | EM-380A | POWDER | AUGER SYSTEM
Machine Structure and Feature
Compact, solid, reliable, stable, low noise, and high efficiency.
Auger as measuring system.
PLC operation with touch screen control.
Photoelectric sensor control system.
Stepper motor to control film feeding system, higher accuracy.
Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.
Digital temperature controller, easy to operate.
Auto counting system, easy to monitor quantity of output.
Automatic measuring, filling, sealing, and date code printing.
Same machine can be used for different bag width by changing the former.
- Bag length is controlled on screen display.
- Air Compressor
Scope of Application
- Powder – coffee powder, milk powder, cocoa powder, creamer, flour, etc
|Model||EM - 380A|
|Seal Type||Pillow Seal|
|Product To Be Packed||Powder|
|Capacity||10 - 25 bags / min (depends on product weight)|
|Packaging Weight||200g - 1000g|
|Bag Size||(W) 100 - 180mm * (L) 50 - 300mm|
|Former Size||Depends on bag size|
|Film Material||Heat - sealable laminated film (e.g. OPP / CPP , OPP / CPP , PT / PE)|
|Power||220V / 1.8kW|
|Air Consumption||0.8Mpa , 0.4m3 / min|
|Machine Dimension||900 * 1150 * 2100mm|
Form of Packaging
