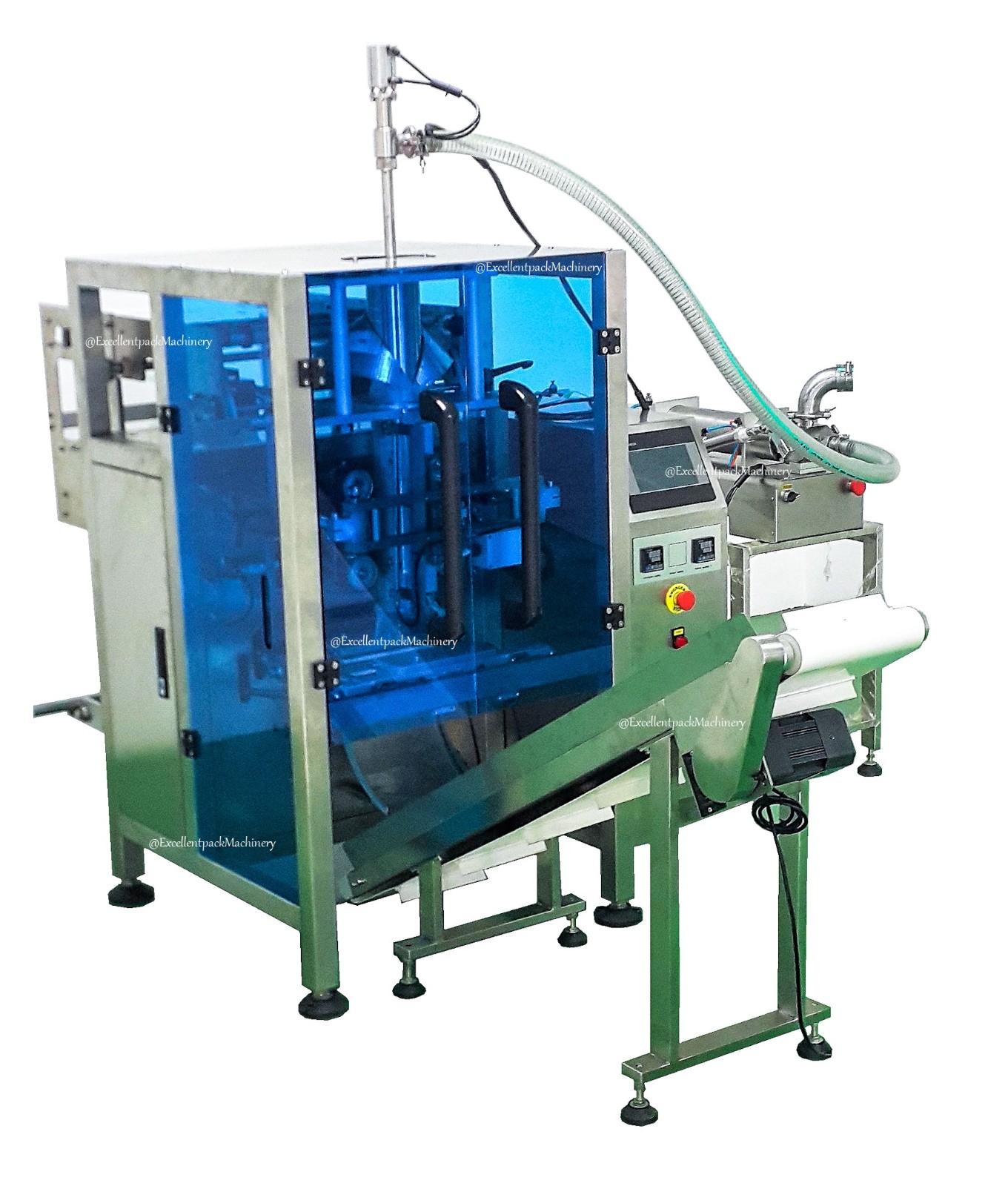

POUCH PACKAGING SYSTEM | COOKING OIL | PE BAG | PISTON FILLING
Description
Form of Packaging
Machine Structure and Feature
-
New design, compact, solid, reliable, stable, low noise, and high efficiency.
-
Piston pump as measuring system.
-
PLC operation with touch screen control, easy to operate and efficient.
-
Photoelectric sensor control system, accurate positioning.
-
Servo motor to control film feeding system, higher accuracy, higher speed.
-
Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.
-
Digital temperature controller, easy to operate.
-
Auto counting system, easy to monitor quantity of output.
-
Automatic measuring, filling, sealing, and date code printing.
-
Bag length is controlled on screen display.
- A few automatic alarming function, reduce wastage to minimum.
Parts Included In System
-
EM-420 machine
-
Piston Pump
-
Finished product conveyor
-
Storage tank (optional)
- Piping connected from storage tank to machine (optional)
Optional Equipment
-
Air Compressor
- Additional piston pump – for higher speed and capacity.
Scope of Application
- Cooking oil
Model | EM - 420PPE |
Product To Be Packed | Cooking Oil |
Capacity | 8 - 12 bags / min |
Packaging Weight | 100 - 1000ml |
Film Width | 420mm |
Bag Length | 60 - 300mm |
Bag Width | 60 - 200mm |
Film Material | PE |
Power Source | 220V / 50Hz / 1,8kW |
Air Consumption | 0.8Mpa , 0.4m3 / min |
Machine Weight | 400kg |
Machine Dimension | L1260 * W1050 * H1560mm |
Form of Packaging
