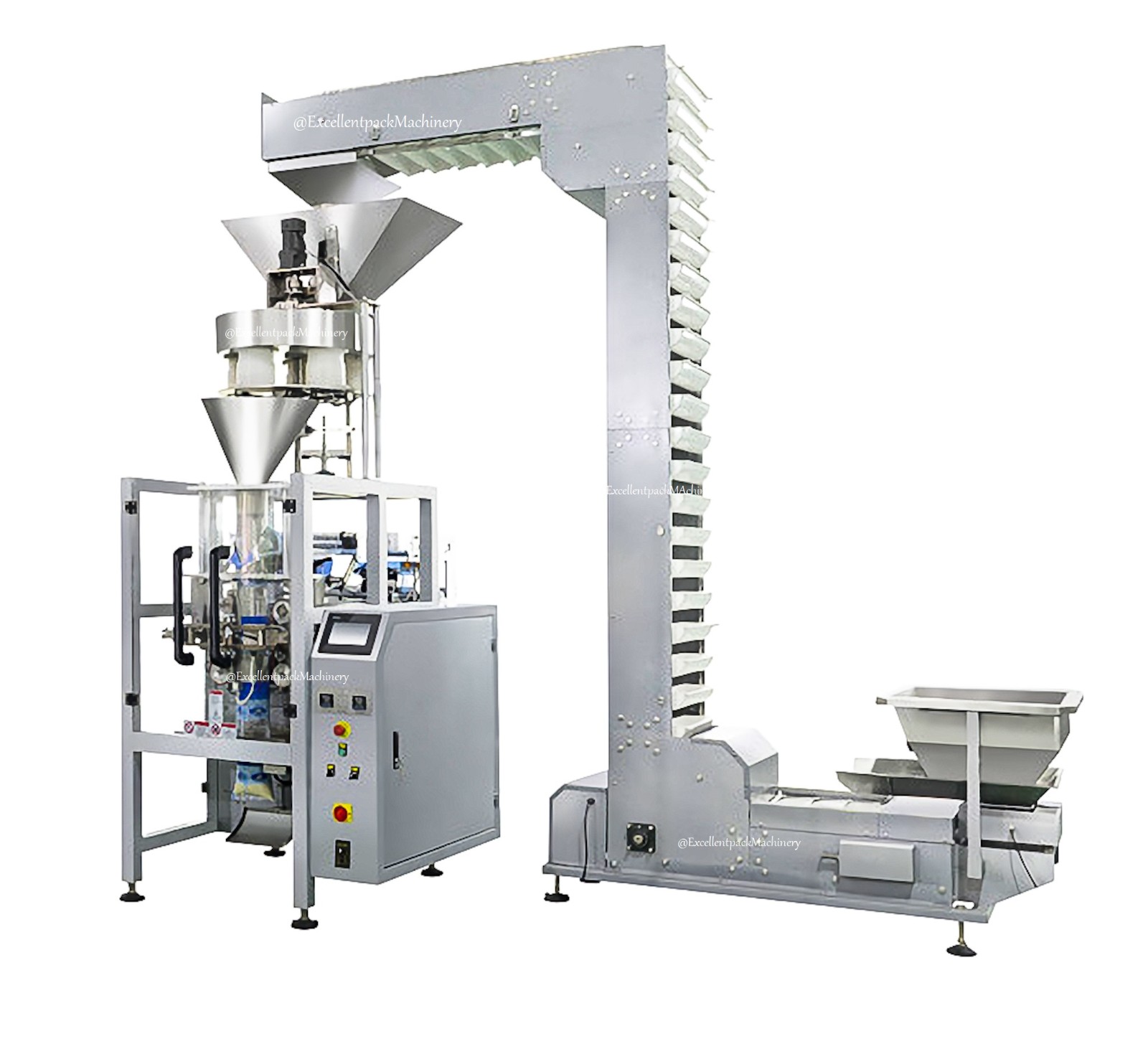

POUCH PACKAGING SYSTEM | VOLUMETRIC CUP FILLING
POUCH PACKAGING SYSTEM | VOLUMETRIC CUP FILLING FULLY AUTOMATIC SYSTEM Melaka, Malaysia Supplier, Suppliers, Supply, Supplies | EXCELLENTPACK MACHINERY SDN BHD
WhatsApp me if you interested
Description
Machine Structure and Feature
  1. New design, compact, solid, reliable, stable, low noise, and high efficiency.

  2. Volumetric cup as measuring system.

  3. PLC operation with touch screen control, easy to operate and efficient.

  4. Photoelectric sensor control system, accurate positioning.

  5. Servo motor to control film feeding system, higher accuracy, higher speed.

  6. Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.

  7. Digital temperature controller, easy to operate.

  8. Auto counting system, easy to monitor quantity of output.

  9. Automatic measuring, filling, sealing, and date code printing.

  10. Bag length is controlled on screen display.

  11. A few automatic alarming function, reduce wastage to minimum.
Parts Included In System
  1. EM-420 machine

  2. Volumetric Cup

  3. Bucket conveyor / Z type bucket conveyor

  4. Finished product conveyor

  5. Turn table (optional)
Optional Accessories
  1. Hole Punching Device

  2. Sachet Linking Device

  3. Easy Tear Device
Optional Equipment
  1.  Check Weigher

  2.  Metal Detector

  3.  Air Compressor
Scope of Application
  1. Snacks, seeds, granules.
Form of Packaging
Pillow sealed bag or gusset bag.


Model EM - 420C EM - 520C EM - 720C
Product To Be Packed Powder / Granule Powder / Granule Powder / Granule
Capacity 10 - 20 bags / min 10 - 20 bags / min 10 - 20 bags / min
Packaging Weight 100 - 1000g 100 - 2000g 150 - 4000g
Film Width 420mm 520mm 720mm
Bag Length 60 - 300mm 80 - 350mm 100 - 450mm
Bag Width 60 - 200mm 80 - 250mm 100 - 350mm
Film Material Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE ,OPP / CPP , PT / PE)
Power Sauce 200V / 50Hz / 1.8Kw 200V / 50Hz / 3kW 200V / 50Hz / 3.6kW
Air Consumption 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min
Machine Weight 450kg 750kg 900kg
Machine Dimension L1260 * W1050 * H1350 L1500 * W1080 * H1500 L1700 * W1620 * H1800


Model EM - 420C EM - 520C EM - 720C
Product To Be Packed                    Powder / Granule Powder / Granule Powder / Granule
Capacity 10 - 20 bags / min 10 - 20 bags / min 10 - 20 bags / min
Packaging Weight 100 - 1000g 100 - 2000g 150 - 4000g
Film Width 420mm 520mm 720mm
Bag Length 60 - 300mm 80 - 350mm 100 - 450mm
Bag Width 60 - 200mm 80 - 250mm 100 - 350mm
Film Material Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE ,OPP / CPP , PT / PE)
Power Sauce 200V / 50Hz / 1.8Kw 200V / 50Hz / 3kW 200V / 50Hz / 3.6kW
Air Consumption 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min
Machine Weight 450kg 750kg 900kg
Machine Dimension L1260 * W1050 * H1350 L1500 * W1080 * H1500 L1700 * W1620 * H1800
